A.Hock

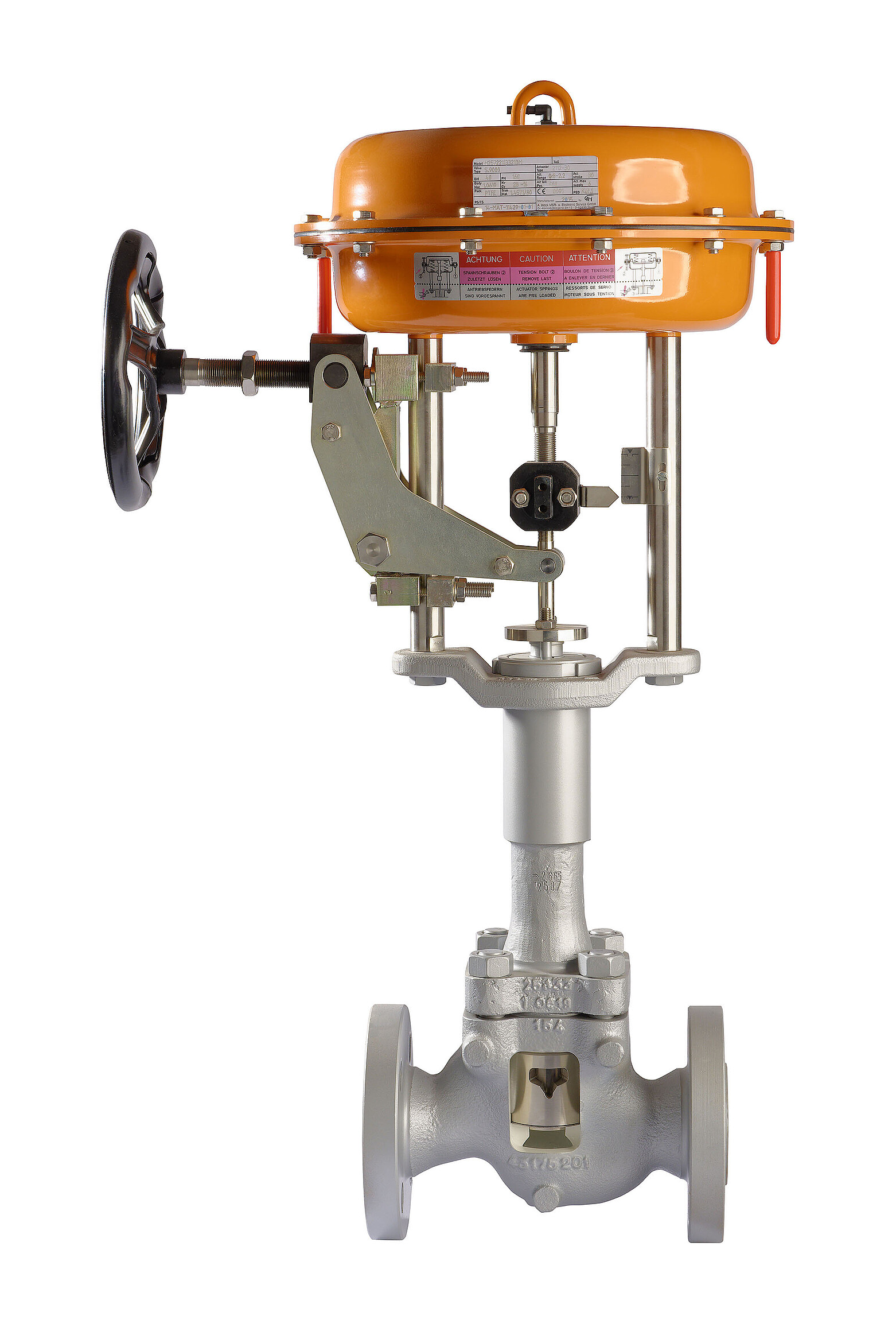

Control valve series 9000
High-pressure single or double-seat cage-guided valves
The high-quality A. Hock two-way control valves are extremely rugged and versatile. Available as single (9100) or double seat (9200) cage-guided valves, they are particularly suitable for industrial applications with pressure ranges above 40bar/300psi and up to 160bar/900psi.
Go to overviewTechnical
- Nominal pressure
- PN40 - PN160
- Nominal size
- DN15 - DN300
- CV value
- 0,01 - 1400
- Leakage class
- class IIIclass IVclass Vclass VI
- Medium
- Fluid, Steam, Gas
- Actuation
- Pneumatic or electrical
- Body material
- Carbon steel, stainless steel
Application areas
Thanks to their sturdy construction, the high-performance straight-through control valves are primarily used to reduce high differential pressures. They are particularly suitable for controlling a variety of fluids as well as gas and steam in industrial high-pressure applications. The accessory range of the high-pressure cage-guided valves of the 9000 series can be configurated individually.
Features and advantages
- excellent stability in high differential pressure ranges
- large flow capacity
- low noise trims
- flow-inducing, large-volume housing
- multi-walled bellows
- also available with pressure balance
Downloads
Icon | Title | Language | Filetype | Download |
---|---|---|---|---|
S9000 Specification pdf german | german | Download | ||
S9000 Installation and Operation Manual pdf german | german | Download | ||
S9000 Specification pdf english | english | Download | ||
S9000 Installation and Operation Manual pdf english | english | Download | ||
Safety Information pdf german/english | german/english | Download |
Are you looking for an extremely robust and durable control valve for your high-pressure application?
We would be pleased to dimension your high pressure control valve and support you in selecting the appropriate actuator. For a comprehensive and individual consultation, we would also be pleased to visit your company directly.
