Discontinued 01/01/1990

Honeywell

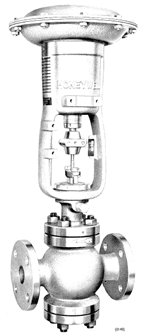

Control Valve Series 800 Type12

Two way single seated valve

Former Honeywell two way control globe valve of Type 12. The single seated valve is used for application, for which sealed valves will be needed.


Features and advantages

  • Valve Size: DN25 - 300
  • Body Material: cast iron, carbon steel; stainless steel
  • Pressure Rating: PN16 - 160
  • End Connections: flanges, welded, bolted
  • Bonnet: Standard, extension or bellows seal bonnet
  • Packing: PTFE V-ring, PTFE silk, TA-L
  • Plug Type: lin, equal perc., QO
  • Cv - Value: Cv 1500-4
  • Leakage rate: max. 0,01%
